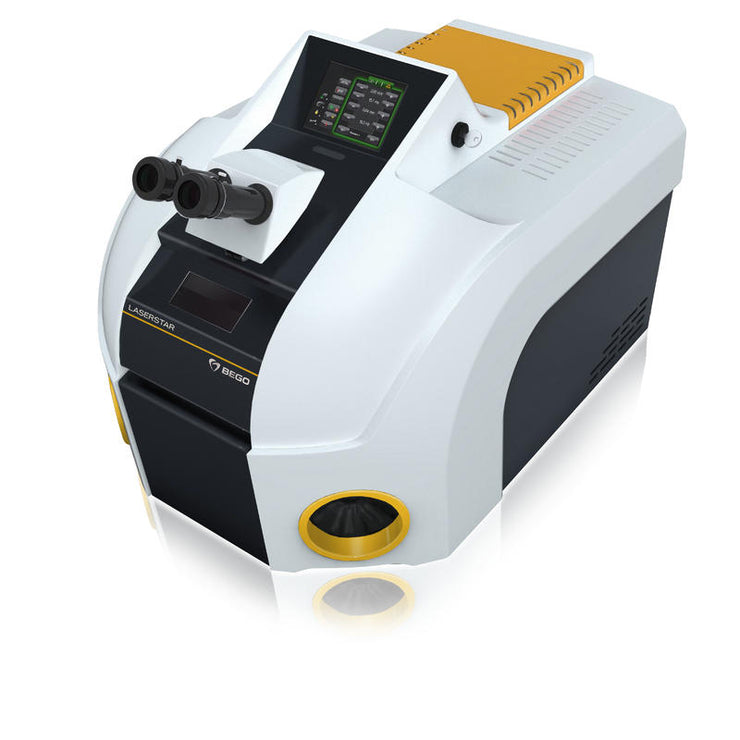

LaserStar T plus®

• Compact and powerful, with user-friendly features

• Precision welding ensured by controllable welding energy with pulse time, charging voltage and focus adjustment

• Ergonomic design and positioning of the controls directly in the field of vision for convenient and fatigue-free working

• Simple operation with a large colour touch display and intuitive menu navigation

• Pulse shaping for high-strength stress- and crack-free joints

• Eco mode switches off all unnecessary components in idle mode and reduces operating costs

• The external Ventus extraction unit efficiently removes welding fumes from the welding chamber, ensuring maximum safety at

the workplace

• Item name

  LaserStar T plus
• Laser type

  Nd: YAG
• Welding smoke extraction

  Integrated connection for an external extraction system, such as BEGO Ventus
• Welding parameter

  can be set both inside and outside the welding chamber
• Microscope

  4H Jena with TrueView function 16x (visible magnification)
• Pulse shapes

  4 fixed, 12 variable available
• Width

  540 mm
• Height

  460 mm
• Depth

  690 mm
• Product description

  Compact power laser unit
• Wave length

  1064 nm
• Content/amount

  1 piece
• Wasser-Luft-Kühling

  with ion filter, integrated
• Nominal voltage

  230 V 50/60 Hz
• Lighting working chamber

  LED ring light, adjustable
• Inert gas nozzle for argon

  1 flexible, 1 fixed
• Aming

  Reticle in microscope
• Power requirements

  230 VAC/50 Hz, 1 phase, 13 A or 110 VAC/60 Hz, 1 phase, 15 A
• Pulse rate

  Single pulse, 1-50 Hz
• Stain diameter

  0.2 - 2.6 mm
• Net weigth

  60 kg
• Pulse energy

  J
• Pulse energy

  0
